Corrugated Plant Automatic Conveying Equipment
marke :Newkuani
Die HERKUNFT der Produkte :China
Die lieferzeit :20days
Die fähigkeit, :100sets/month
Main parameter
Outline size： 2300mmW*3000mmL*350mmH*2 Max capacity：3600KG；
Belt power：2.2kw*2；rotary motor power: 1.5kw
Transfer speed：Max30m/min（belt），Schneider inverter, frequency control of motor speed.

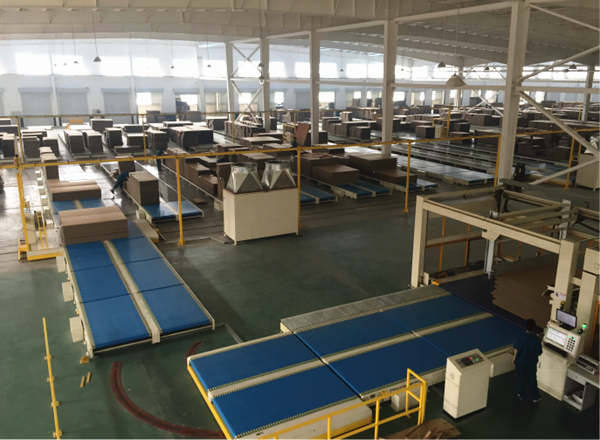

Video of Intelligent Logistics Conveying System in Cardboard Factory:
Module plastic belt Turntable
1) Main parameter
l Outline size： 2300mmW*3000mmL*350mmH*2 Max capacity：3600KG；
l Belt power：2.2kw*2；rotary motor power: 1.5kw
l Transfer speed：Max30m/min（belt），Schneider inverter, frequency control of motor speed.
2) Mesh belt：POM material, mesh thickness 12mm，modules type，maintain easy and simple、less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between mesh belt and supporting article.
3) Frame material：Using plate cold pressing molding, the surface electrostatic painting treatment. Function: Using for transferring the cardboard sheets.
4) Outline picture：
