Top Corrugated Board Conveyor
marke :NEWKUANI
Die HERKUNFT der Produkte :CHINA
Die lieferzeit :1MONTH
NEWKUANI have successfully developed the intelligentized , economical, and efficient logistics conveyor system to solve the problems that traditional paper industry have, such as variable order and material, complex operation , human cost and etc.
Paper Roll Chain Conveyor
1) Main parameter

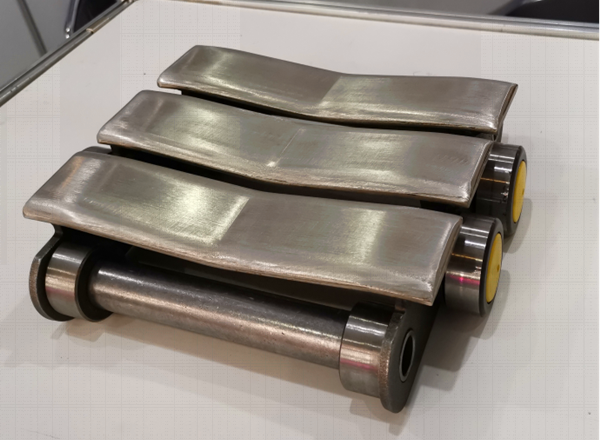

l Structure: by more than a v-shaped plate chain, chain drive gear and rack and pneumatic about playing paper; The Angle of v-shaped plate chain is 170 degrees and the width is 250mm
l Chain speed: Max24 m/min, the inverter speed regulation, can run forward and backward
l chain materials: Stainless steel, 6mm, quenched and tempered after quenching treatment,
l Motor gear oil: ISO VG220
l Exclude the movement of the conveyor when the roll stand sends out the permit signals
l Bearing: FK, rack by draw out type plus butter, easy to maintain
l Conveyors should allow hitting of 8 tons cassettes with corrugating rolls
2) Outline picture
Intelligent base paper transportation system video watch：
Our Advantages:
u High safety;
u Lower manpower;
u Less production cost.
